Mark Haughwout - owner of Highwood Construction and Remodeling - is a certified TREX Pro contractor.
Trex Transcends with Trex Reveal Railings:

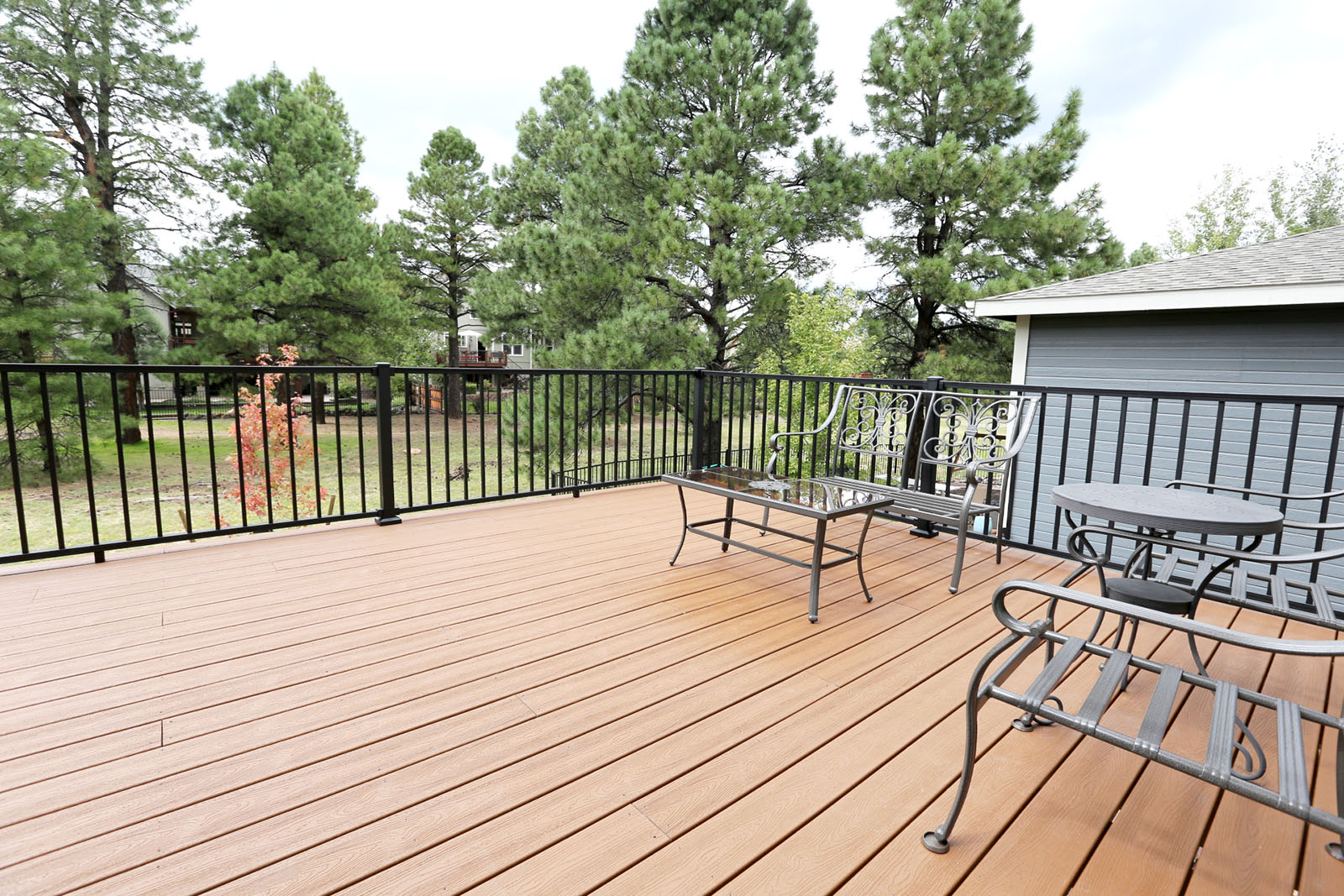

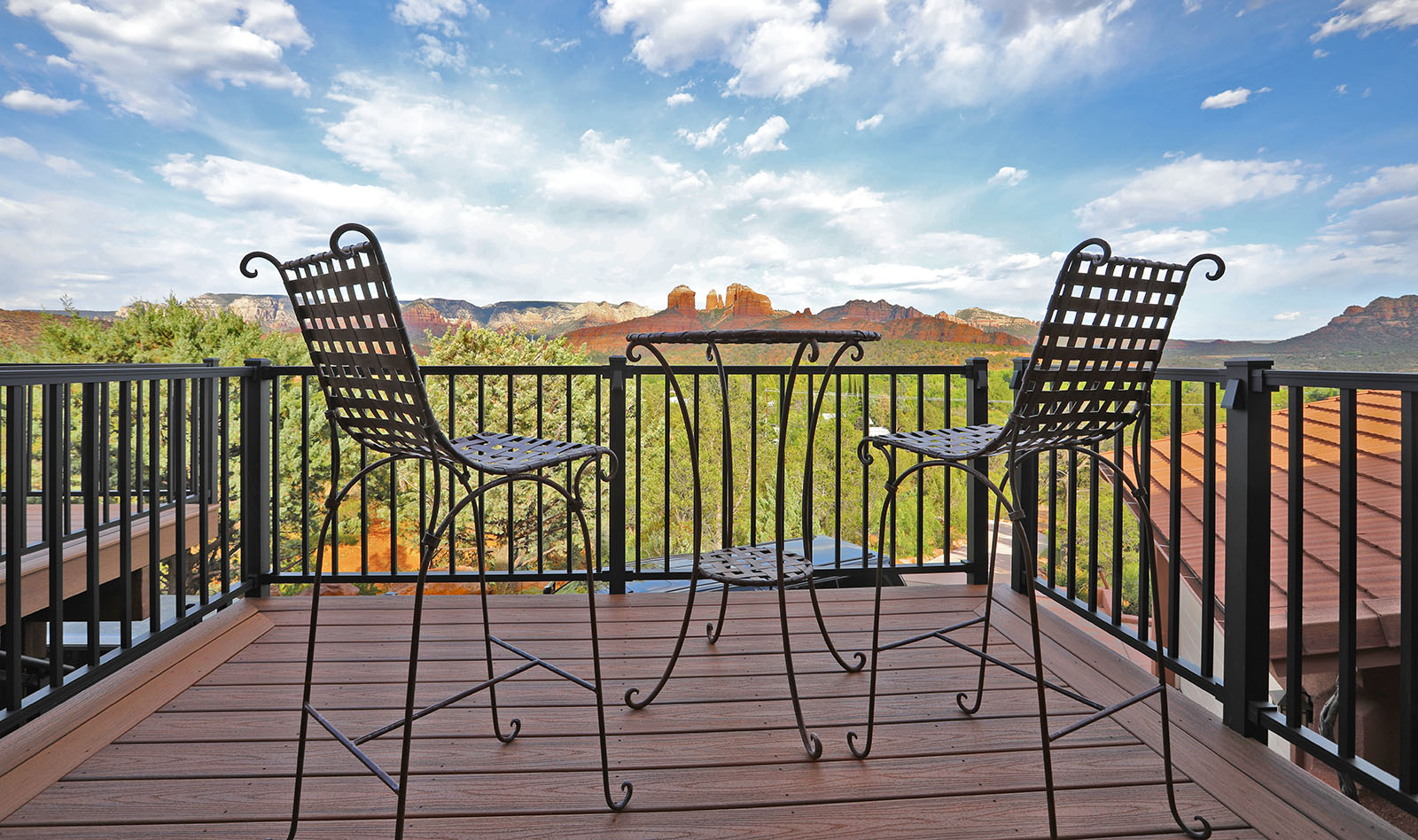

Pictured above and below is Trex Transcends decking in TREE HOUSE color.
The railings are Trex Reveal aluminum railings in Black.
Trex Reveal railings are great for preserving views into a treed backyard or greenbelt.
Since Trex Reveal railings are aluminum, they don't rust and are very low maintenance.

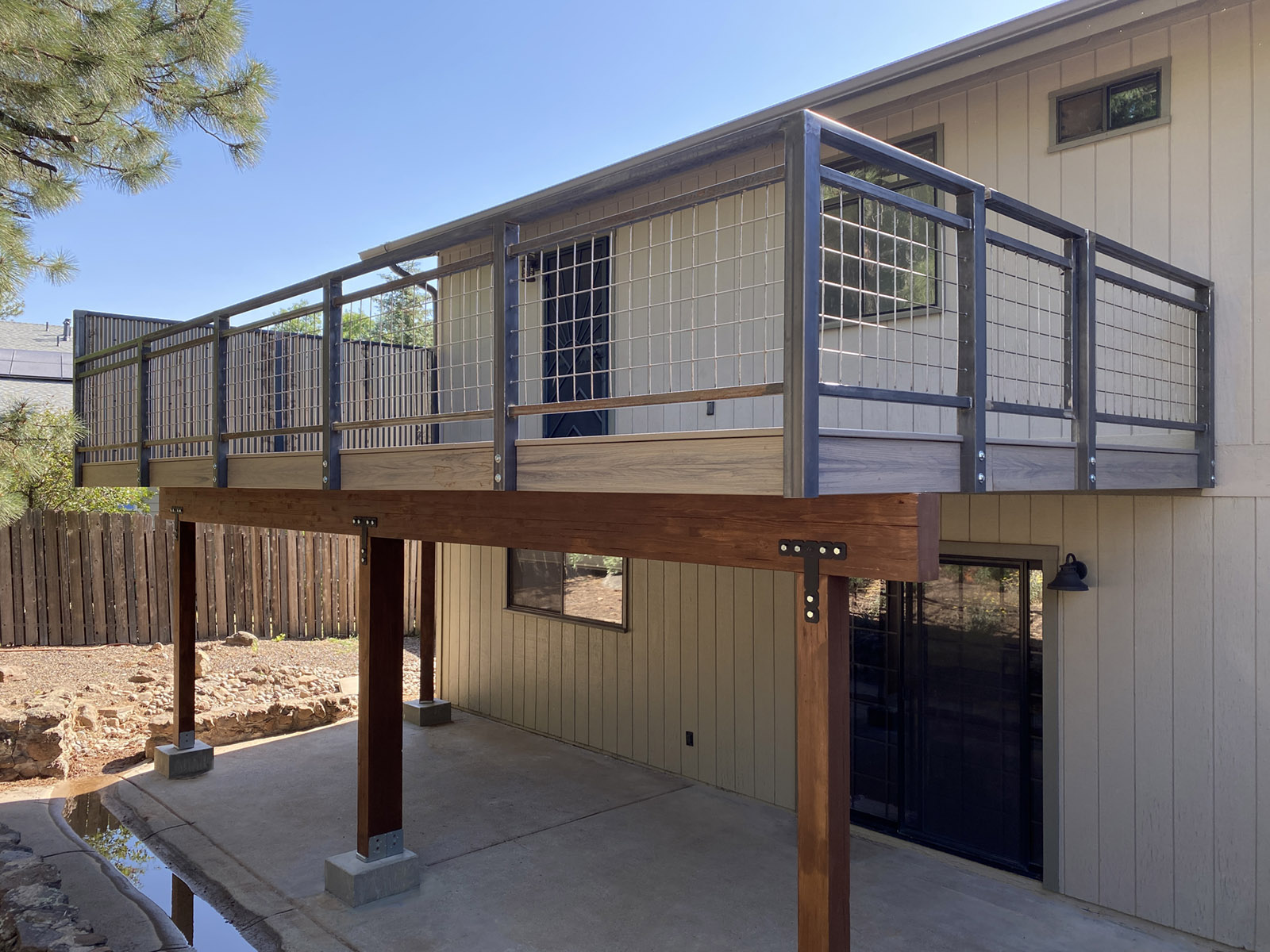

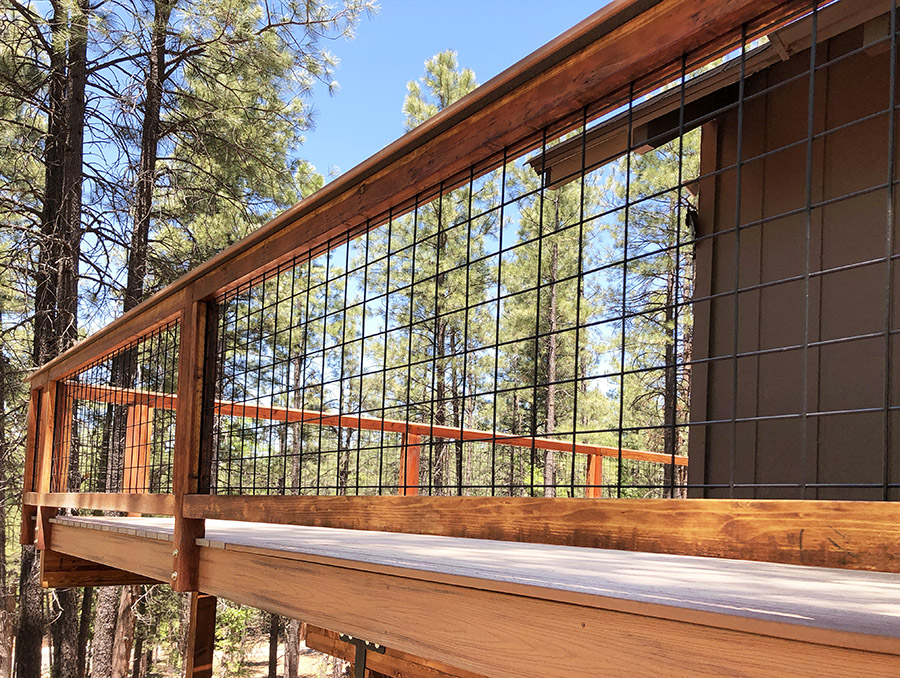

Wild Hog Brand Metal Railing:
This metal railing option allows for a very transparent deck railing option.

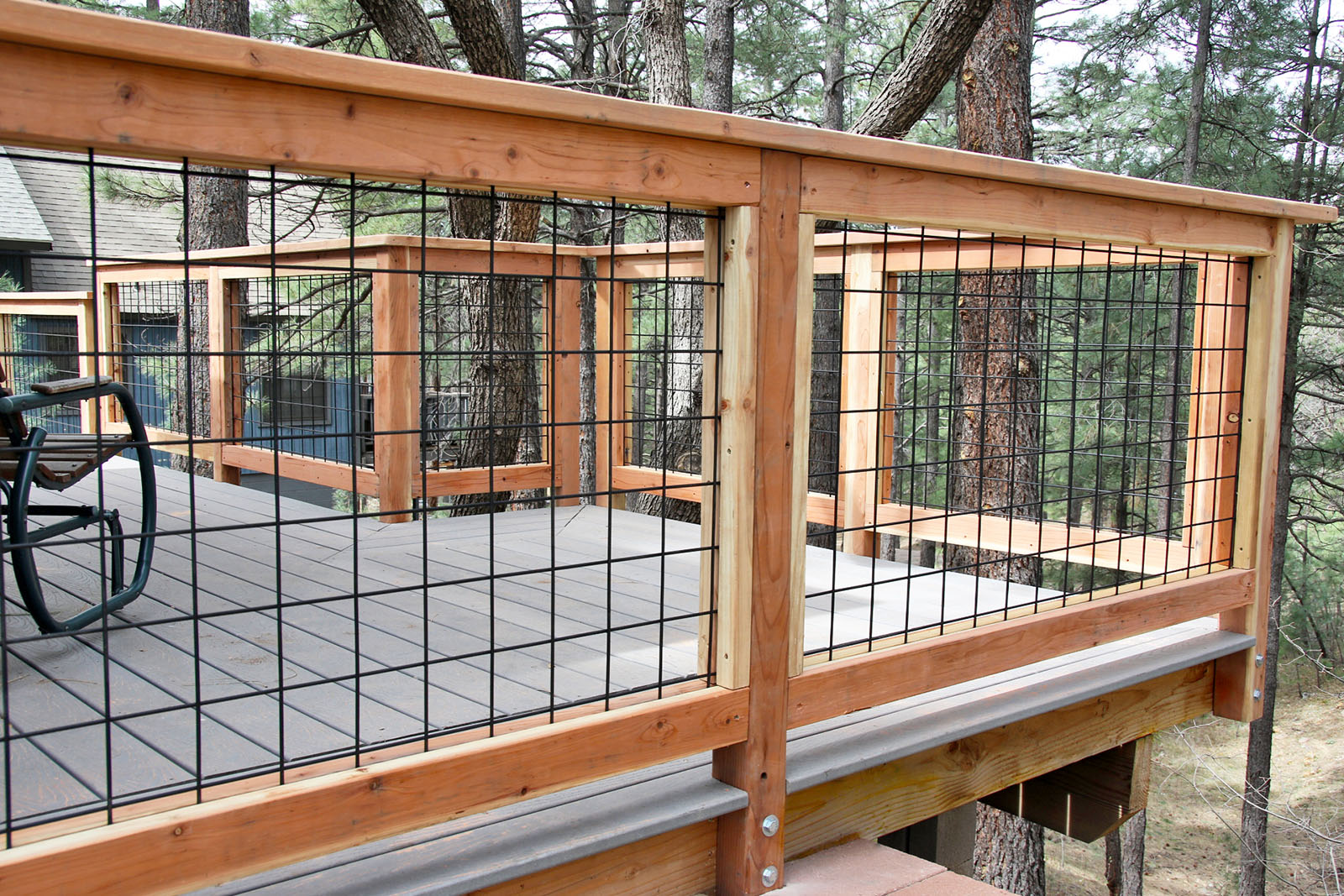

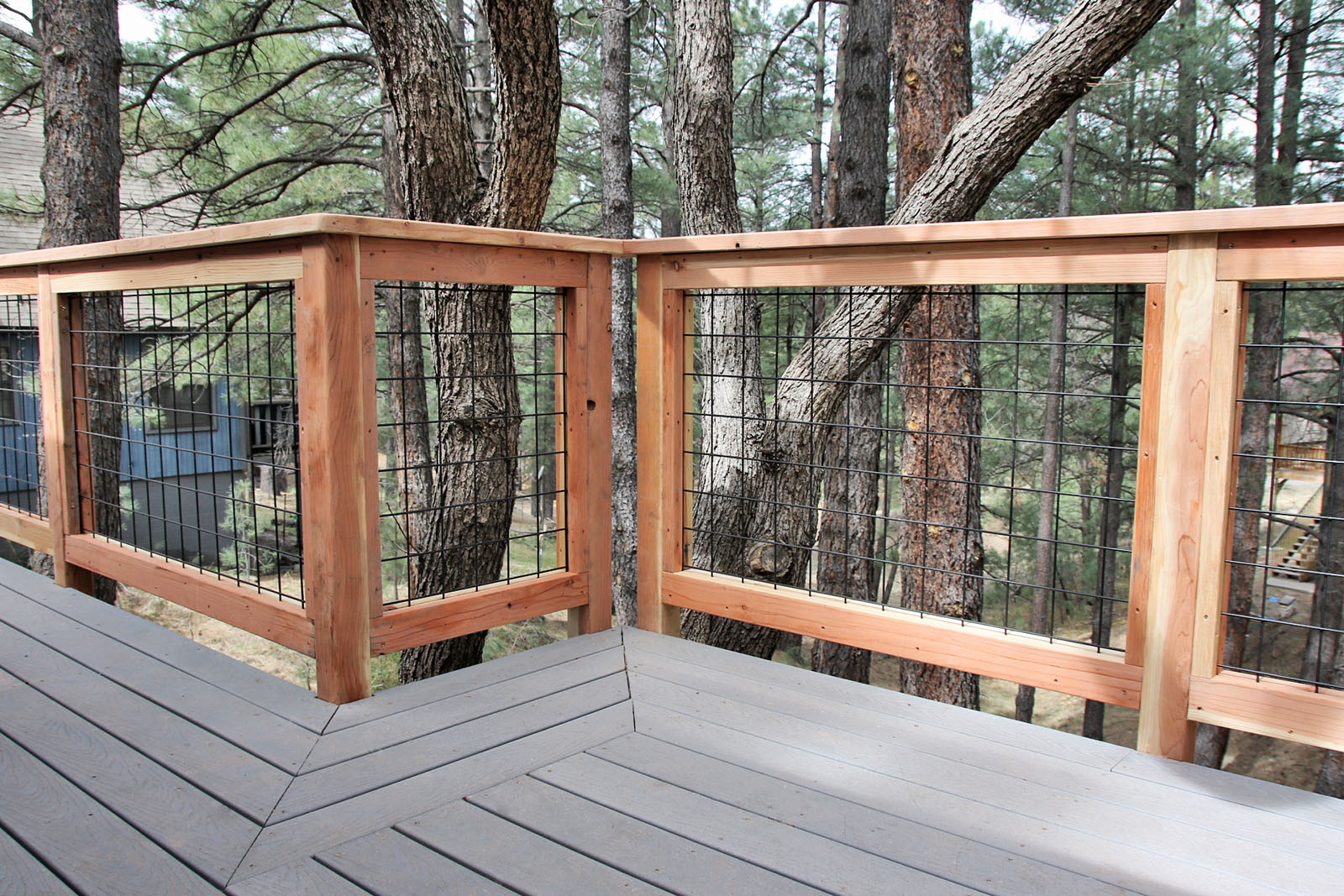

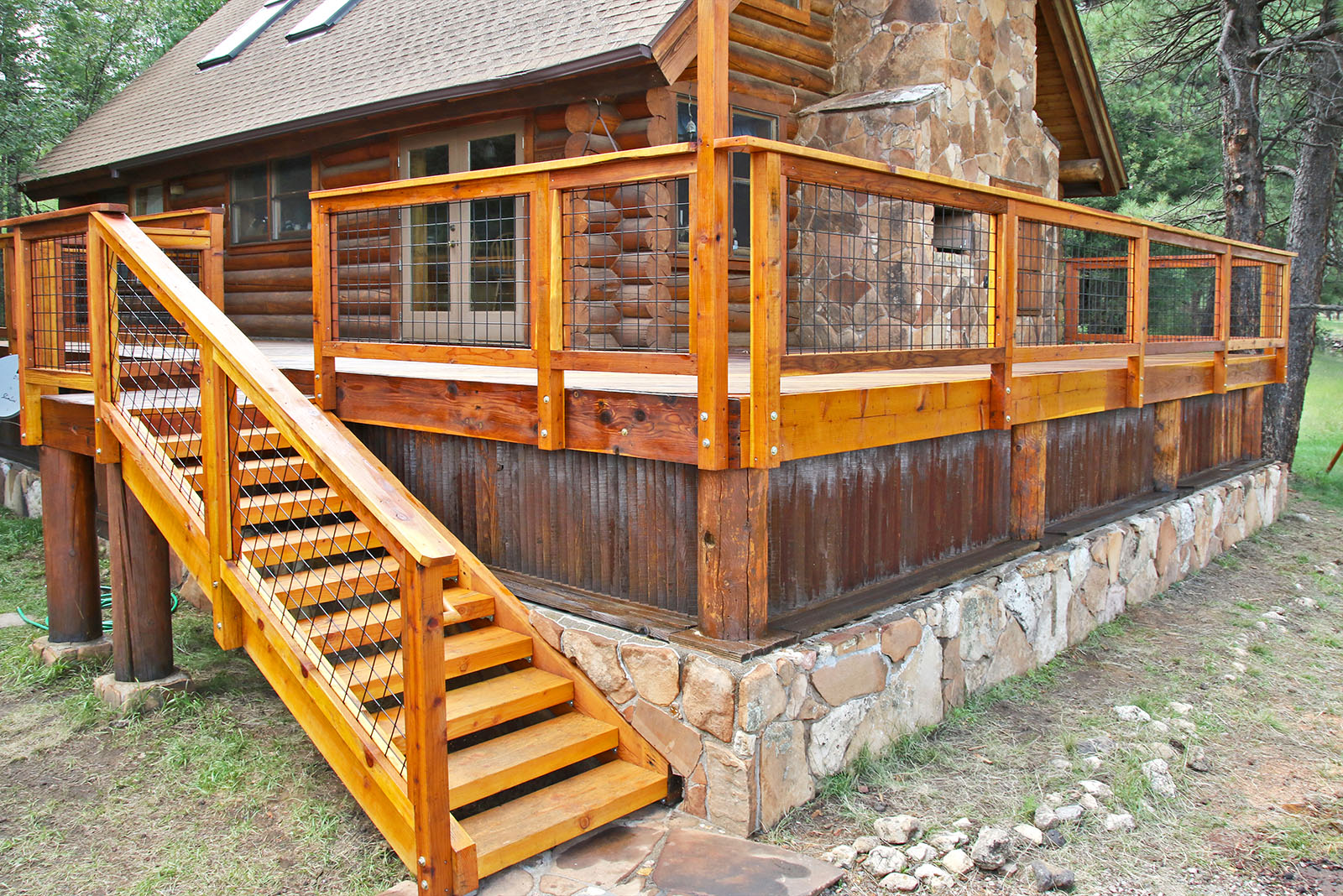

Pictured here is Wild Hog brand welded wire railing with a Redwood Frame.
We installed this railing on a deck in Kachina Village just south of Flagstaff Arizona.
Wild Hog railing is more expensive than traditional wood railings, but cheaper than composite railings.
Wild Hog railing comes pre-painted in black and is a very durable, low-maintenance finish.
Wild Hog Railing Website: http://www.wildhograiling.com

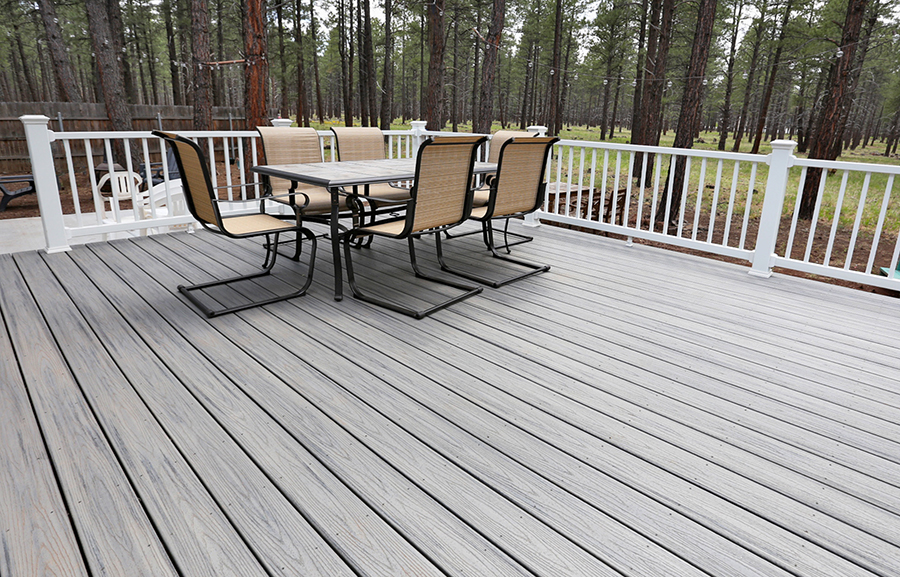

Trex 'Transcends' Decking with Trex Select Handrails:

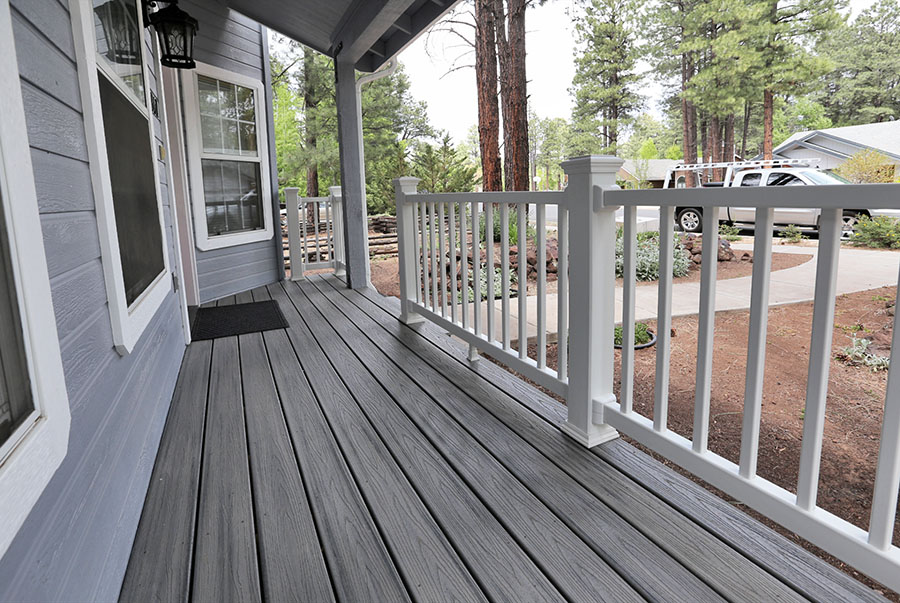

The front porch in the picture above and the rear deck in the picture below are both
Trex Transcend Decking with color matched screws
The decking color is Island Mist and the handrails are Trex Select.
Trex 'Transcends' Decking with Redwood Handrails:
We install and recommend Trex brand composite decking.

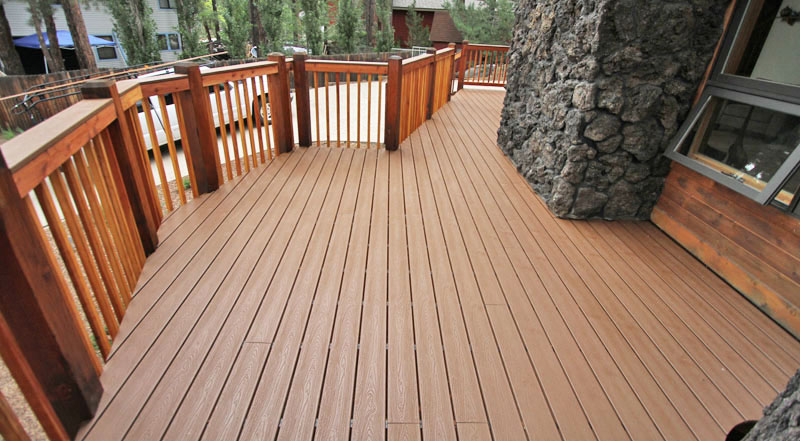

The above deck is made of Trex 'Transcends' decking with hidden fasteners. Color: 'Tree House'.
We installed Redwood guardrails, topped with a Trex 1x6 board. The handrails are stained 'natural' with Sherwin-Williams Deckscapes.

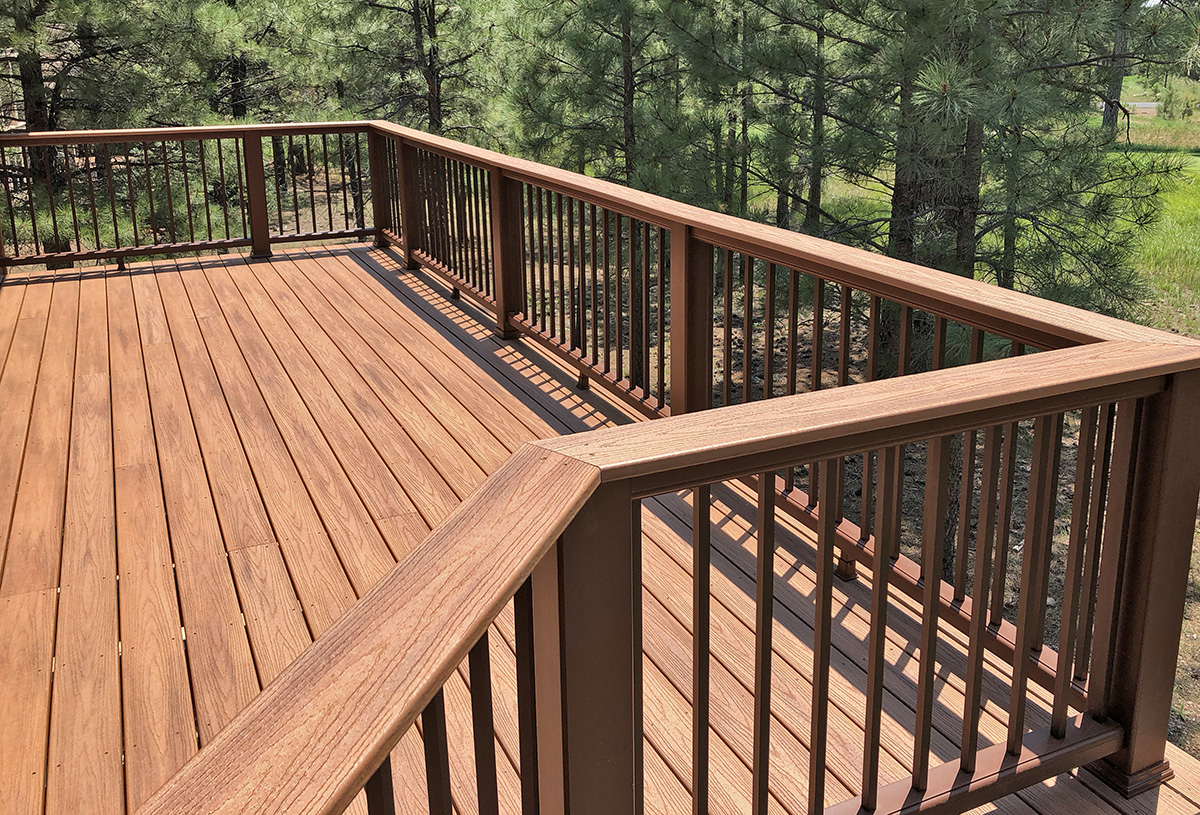

Trex Composite Deck Boards with Trex Composite Railing:
Trex "Accents" decking and "Designer" railing. Colors: Saddle and Madeira.
Posts are 4x4 Doug-Fir with Trex Madeira sleeves and caps.
Siding is LP "smartside" 8" lap siding with LP "smarttrim" installed over siding.
Paint is Sherwin Williams Super Paint.
Trex Decking with Trex Composite Handrails:
Trex brand decking. Designer series handrails. Accents deck boards.
Colors: Madeira and Saddle
Trex Post sleeves with Trex post skirts and Trex post caps. Color match deck screws.
Flagstaff / Munds Park Arizona
Flagstaff Fire Department Tests Different Deck Materials:
The Flagstaff Fire Department tested four brands of Composite deck materials and wood decking. Trex was the only composite material that performed well:
"Most of the composite materials ignited easily and resulted in high to extreme fire severity (fig. 4).But Trex,* a material made from plastic and wood, performed well. Trex was more difficult to ignite than the other composites and ultimately self-extinguished (fig. 5). Trex's fire resistance appeared to result from its density. The composites that performed poorly were less dense."
As a TrexPro Deck contractor, I recommend Trex as the only composite decking material to use. Typically a Trex deck is installed on Doug-Fir Framing members. We stain the top edge of the framing members before applying the deck boards. This helps the framing to last longer and color coordinate with the Trex material (light colored framing would otherwise be visible between the recommended 1/4" gap in the deck boards).
We build our Redwood decks and handrails with corrosion resistant fasteners. All deck boards are screwed to the joists, after the tops of the joists have been sealed for protection.

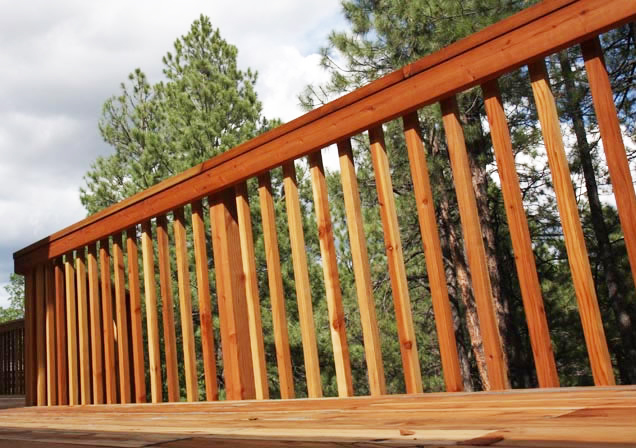

Below: unstained Redwood Handrail built to code requirements.

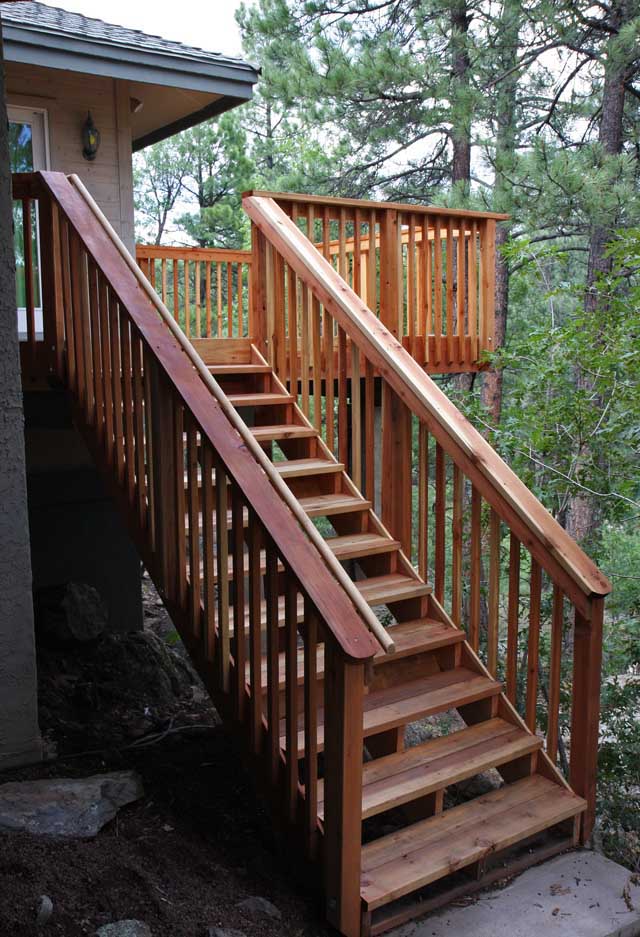

All Guardrails must be at least 36" high. Guardrails that are also Handrails must be between 36" and 38" high and must have a 'grippable' handrail that continues from the top of the stairs to the next full landing - See the picture below:

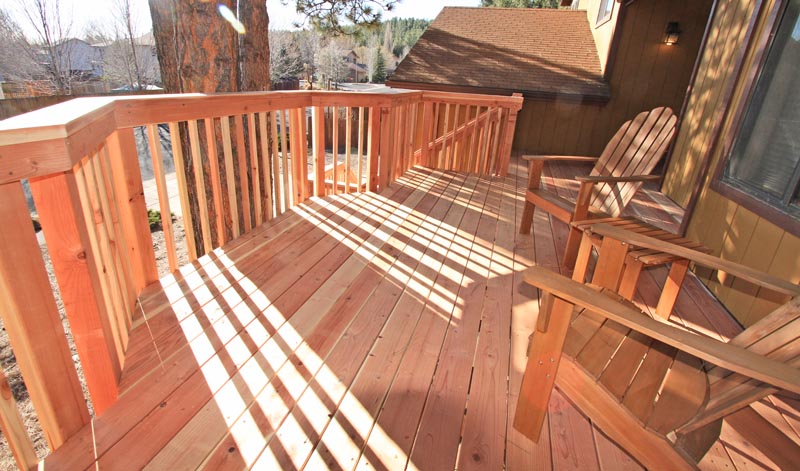

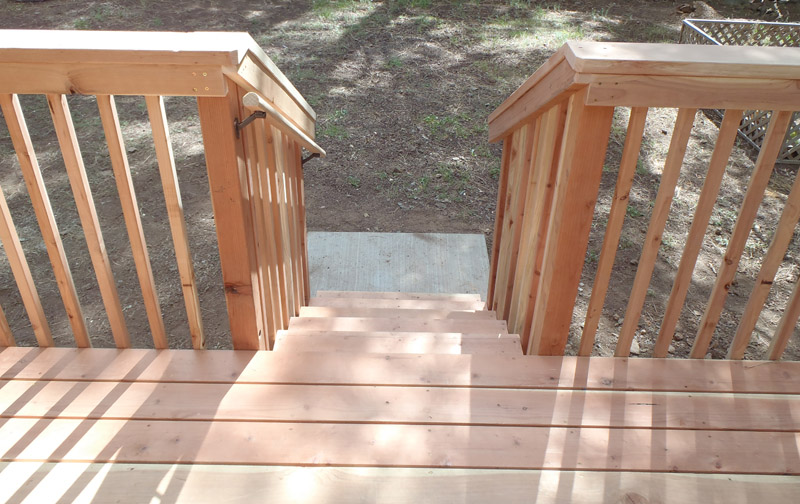

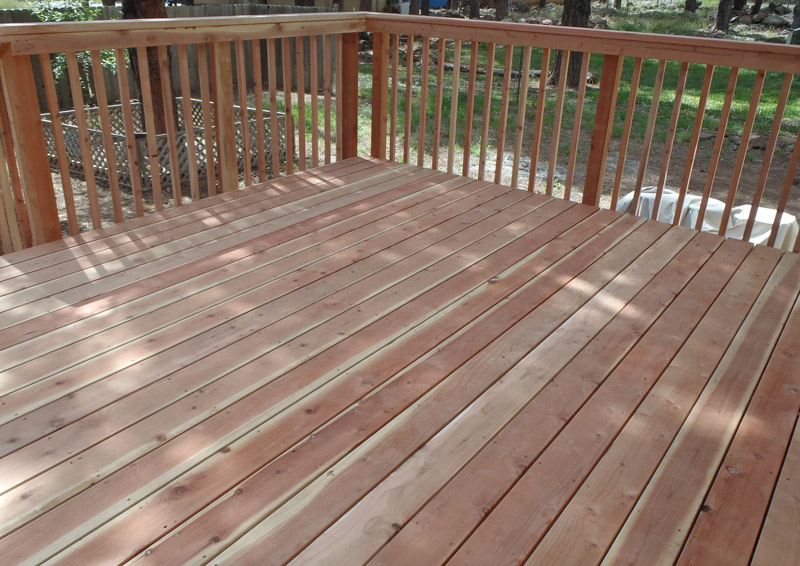

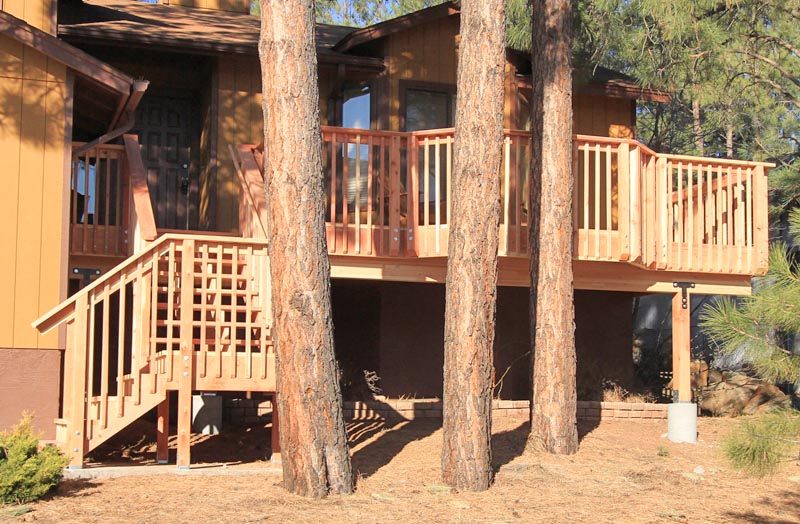

Redwood deck and handrail with clear sealer:
We built this all Redwood deck in Kachina Village and installed a new concrete landing.
Notice the graspable handrail required by code on the left side of the staircase.
Decks 30" or more above ground require a guardrail.
We sealed the Redwood in these pictures with two coats of Sherwin-Williams brand 'clear' Acrylic sealer.
Decks in Flagstaff should be re-stained or water sealed every two years on the horizontal surfaces and every four years on the vertical surfaces.
Redwood Deck and Redwood handrails, Peak View st Flagstaff, AZ:

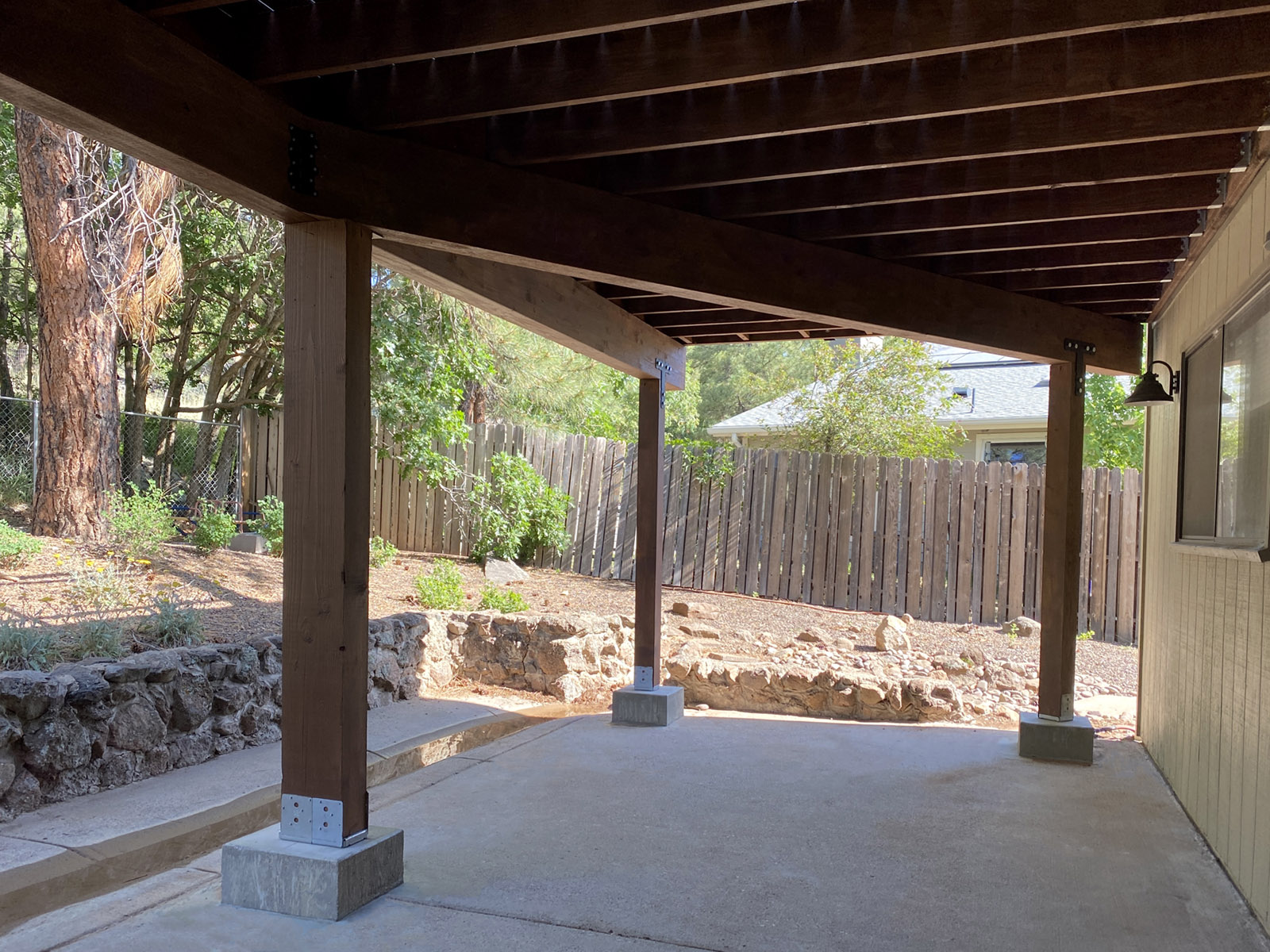

The deck above is built with 6" x 6" Redwood posts under the main deck. The post to beam connection is a decorative metal 'T' bracket. This deck also has a 2x12 Redwood rim joist to match the redwood handrails and to give a nicer view from the street.
In Flagstaff and Coconino county, decks are required to have 30" deep concrete footings reinforced with #4 Rebar.

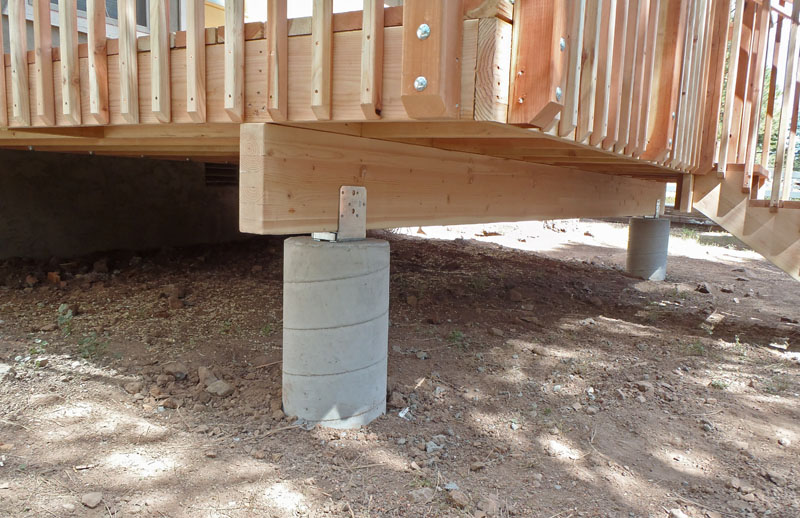

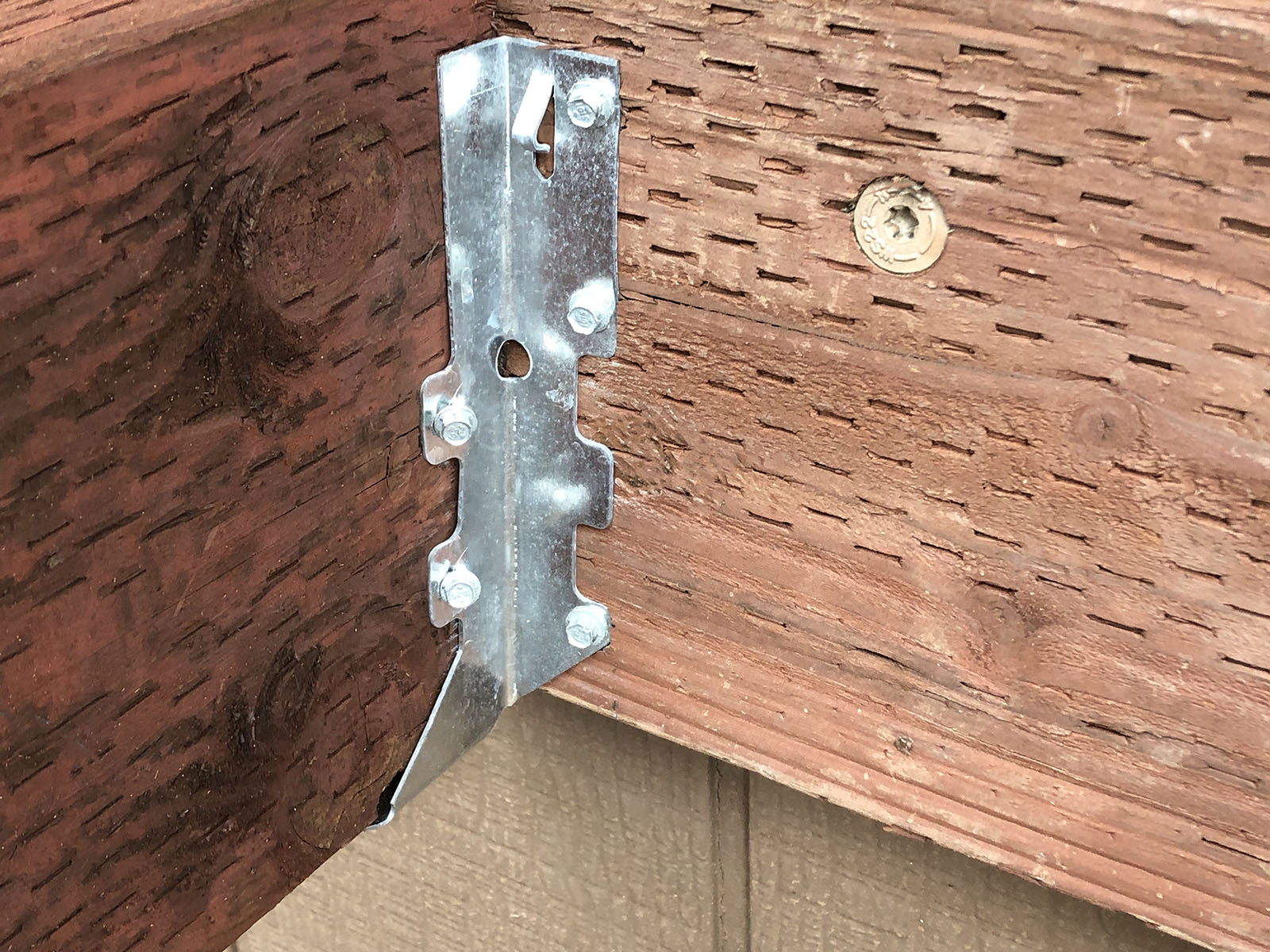

In the deck above we used round concrete forms with Simpson brand brackets and a exterior rated GLB to hold up the deck. Decks in the Flagstaff area must be built to withstand heavy snow loads. (View the 'other guys' work here)
The deck framing is also required to be sealed with two coats by code. We used a 'clear' sealer on this deck, which preserves the natural color of the Redwood decking and handrails as well as the Doug-Fir framing members.
Redwood Railing Options:
Redwood Hand rail with Trex Cap

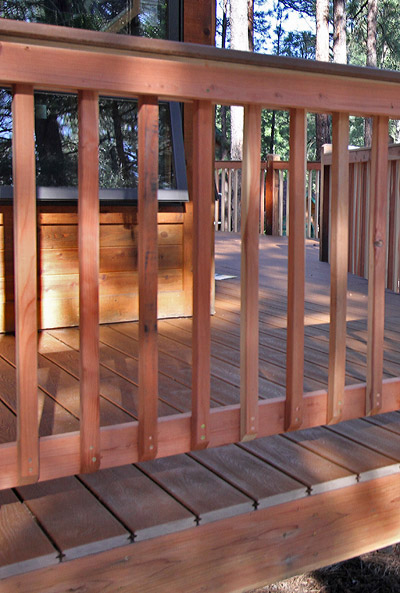

Short Spindle Style:
This style of handrail has the spindles ending on a Redwood 2'x4' about 3.5" above the deck surface. This can be useful for shoveling snow if the rail is located in a high traffic area. However this style is not as strong as the handrail pictured below.
Redwood Handrail with Trex Cap

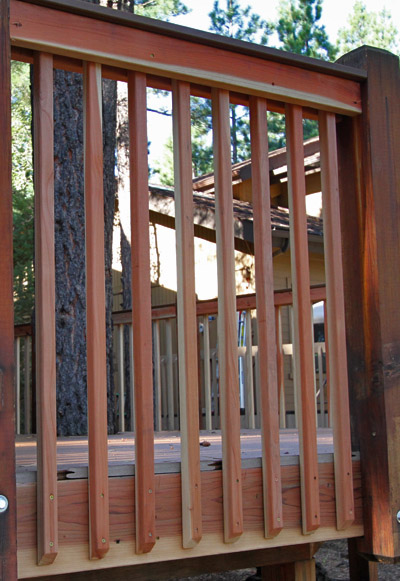

Full Length Spindle Style:
This style of handrail is made of Redwood and the spindles continue down on to the Rim Joist of the deck. This is our preferred method of handrail installation as it provides the maximum strength.
Pictured below is Trex brand composite decking with Redwood handrails.
The Redwood handrails are capped with a 5/4" x 6" Trex deck board.
(Color of Decking: Trex 'Saddle'.)
In the Picture above we also installed the new LP brand 'SmartSide' Siding, followed by two coats of Sherwin Williams Paint.
Trex deck with Redwood handrails and gate:
The deck above and below is made with Trex brand 'Transcends' deck boards with hidden fasteners. Color: Tree House

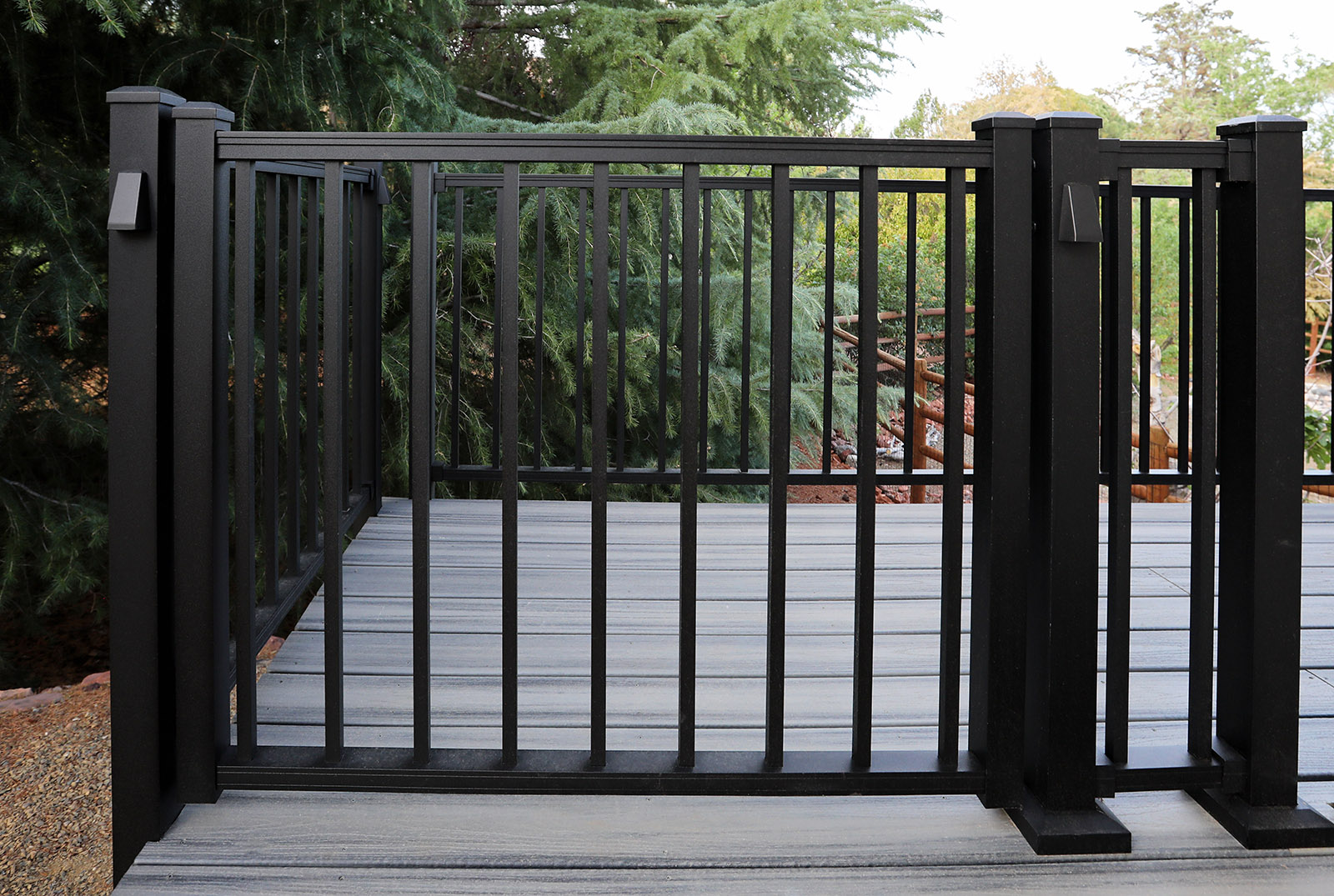

We installed a gate to comply with H.O.A. regulations, but it is also useful for pets.
If you are thinking about replacing your existing deck boards with composite decking (Trex), remember that Trex requires 16" on center framing. Typically Redwood decks are built with 24" on center framing.
New decks, deck expansions, and deck replacements often require plans and a permit, especially if the deck is 30" above the ground. We can arrange for one of our plans drafters to meet with you to discuss your design and draft your plans (hourly rates apply).
Call for a free estimate.

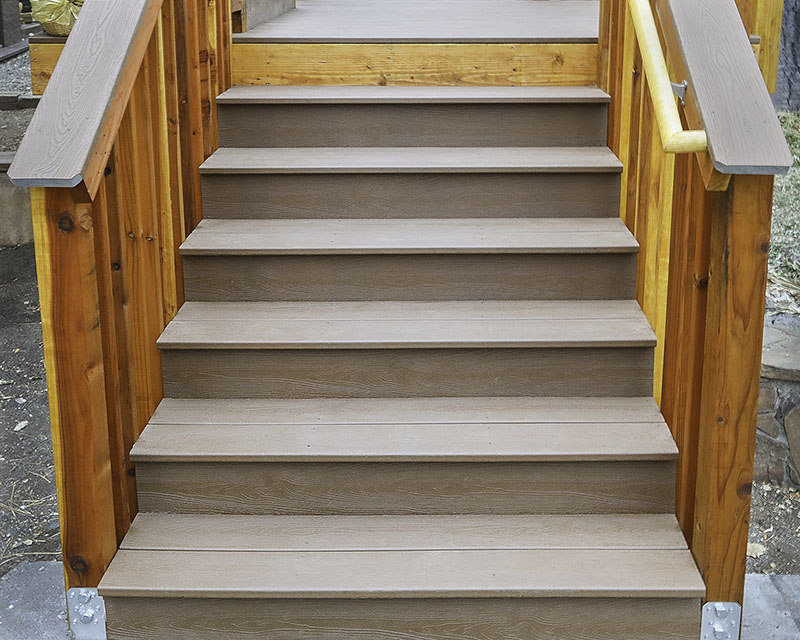

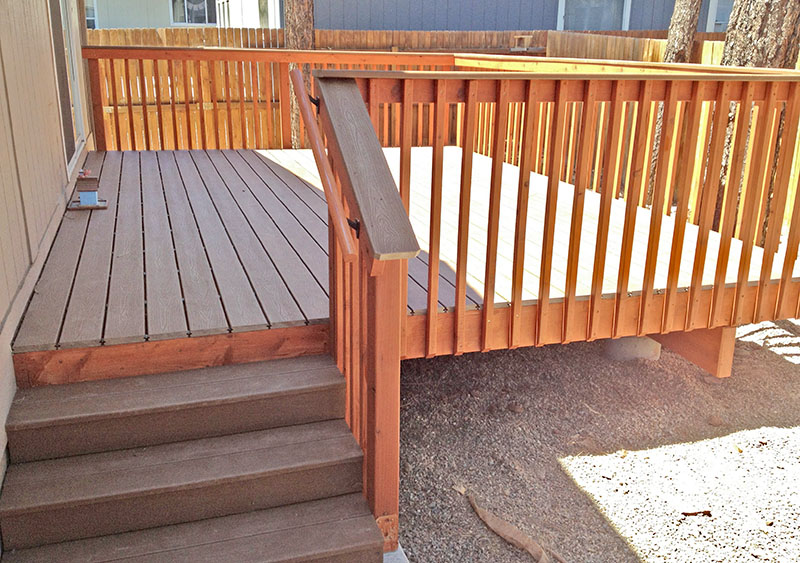

Here is an example of a 12' x 16' Trex Deck with Redwood handrails. The stairs also have a Trex Riser board installed.
Color: Trex Transcends Treehouse. Handrails: Redwood with Sherwin-Williams Deckscapes Oil-Based Redwood Toner.
Proper Deck Building Procedures:

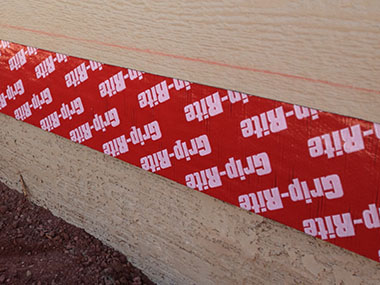

Providing proper drainage under the deck and away from the house is important. Also installing a moisture barrier between the deck ledger board and the house siding helps prevent damage to both the house and the deck from water. For this deck, we installed Grip-Rite brand self-adhesive moister barrier before installing the ledger board.
The picture below shows how we flash under and behind the first deck board to help direct rain and snow melt away from the house and the underlying deck framing. Typically we use a metal flashing, which we attach to the house with fasteners and seal it on the backside with caulking. Notice how this first deck board is fastened with color-coordinated finish screws.

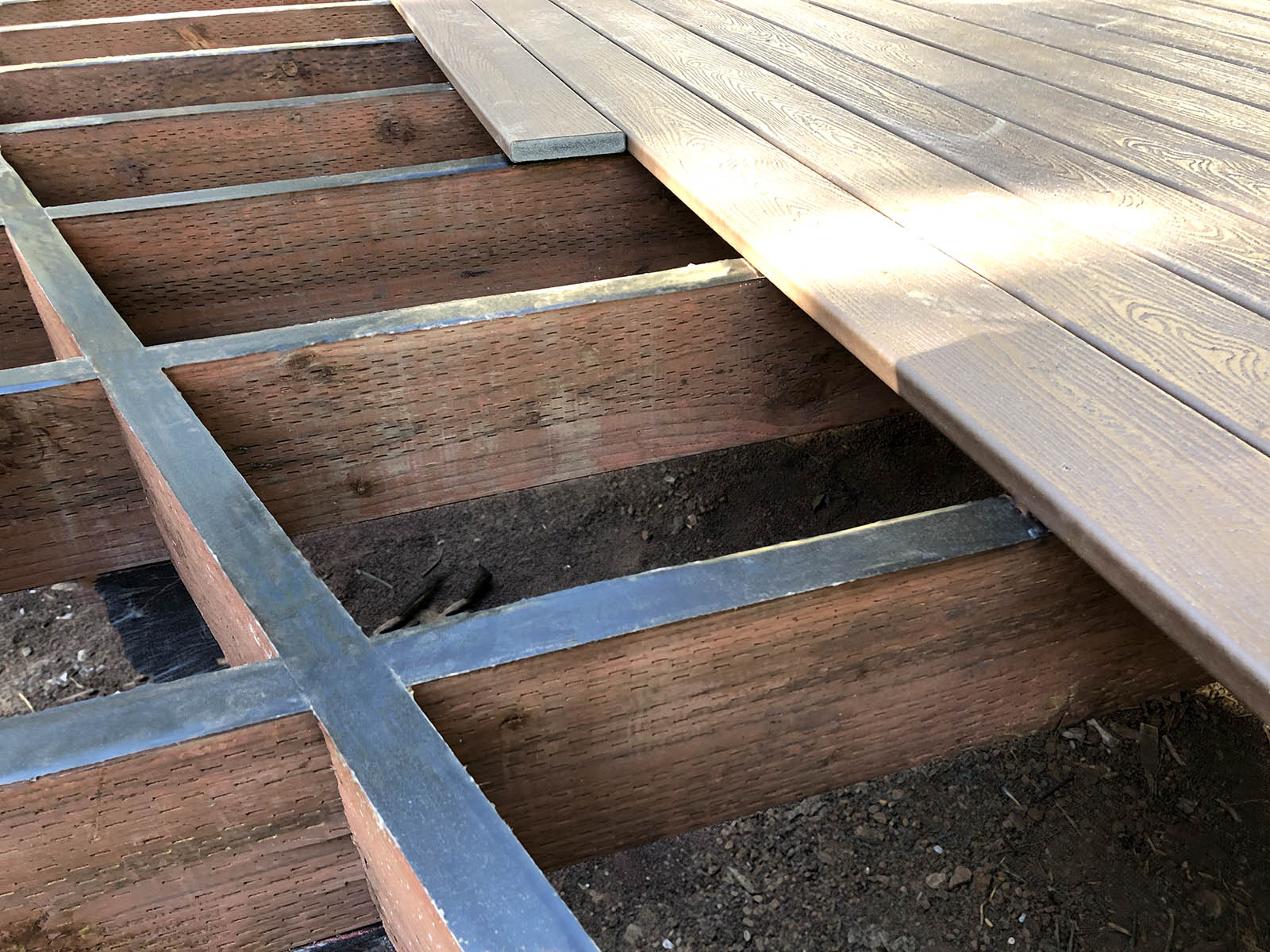

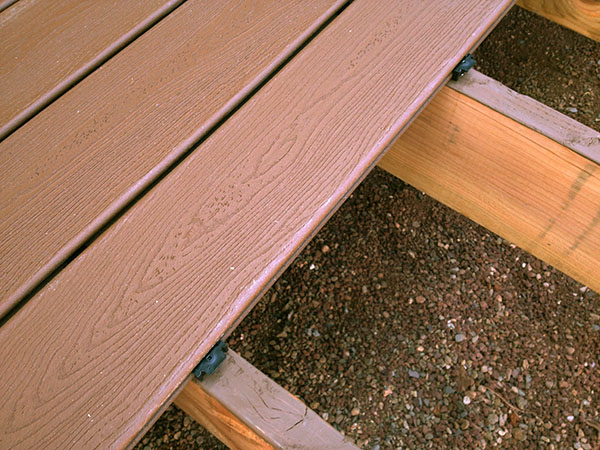

The following picture demonstrates the installation of Trex decking with concealed fasteners. Notice how we stained the top edge of the joists before installing the deck boards. The solid-color stain will help prevent moisture damage in the long run. This is important in Flagstaff, due to monsoon rains in the summer and snow sitting on the deck in the winter.
